KCSE 2017 Chemistry Paper 2 with Marking Scheme

Share via Whatsapp
Download PDF for future reference Get on Whatsapp for 50/-
  1.
    1. Name the homologous series represented by each of the following general formulae.
      1. Cn H2n−2  (1 mark)
      2. Cn H2n       (1 mark)
    2. Compound G is a triester.
      CH3(CH2)16COOCH2
                            l
      CH3(CH2)16COOCH
                            l
      CH3(CH2)16COOCH2
      Compound G
      1. Give the physical state of compound G at room temperature.   (1 mark)
      2. G is completely hydrolysed by heating with aqueous sodium hydroxide.
        1. Give the structural formula of the alcohol formed.   (1 mark)
        2. Write a formula for the sodium salt formed.   (1 mark)
        3. State the use of the sodium salt.   (1 mark)
    3. Ethyne is the first member of the alkyne family.
      1. Name two reagents that can be used in the laboratory to prepare the gas. (1 mark)
      2. Write an equation for the reaction.    (1 mark)
    4. Perspex is an addition synthetic polymer formed from the monomer,
      KCSE 2017 Chem PP2 Q1d
      1. What is meant by addition polymerisation?   (1 mark)
      2. Draw three repeat units of perspex.     (1 mark)
      3. Give one use of perspex   (1 mark)
      4. State two environmental hazards associated with synthetic polymers.    (1 mark)
  2. The conductivity of some substances was investigated. The observations made were recorded in Table 1. Use it to answer the questions that follow.
    Table 1
     Substance   Conductivity in solid state   Conductivity in molten or aqueous state
         F   Does not conduct    Conducts
        G   Conducts    Conducts
        H   Does not conduct    Does not conduct

    1.
      1. Identify a substance that is a metal. Give a reason.   (2 marks)
      2. Substance F does not conduct electricity in solid state but conducts in molten or aqueous state. Explain.
        (2 marks)
    2. Copper(II) sulphate solution was electrolysed using the set up in Figure 1.
      KCSE 2017 Chem PP2 Q3b
      1. State the observations made during electrolysis.    (1½marks)
      2. Write the equation for the reaction that occurs at the anode.   (1 mark)
      3. State the expected change in pH of the electrolyte after electrolysis.   ( ½mark)
    3. The experiment was repeated using copper electrodes instead of carbon electrodes. Describe the observations made at each electrode.    (1 mark)
    4. Electroplating is an important industrial process.
      1. What is meant by electroplating.    (1 mark)
      2. State the purpose of electroplating.     (1 mark)
      3. During electroplating of an iron spoon, a current of 0.6 amperes was passed through aqueous silver nitrate solution for 12 hours. Calculate the mass of silver that was deposited on the spoon.  (3 marks)
        (Ag = 108.0; 1F = 96,500 C mol-1)
  3.
    1. A student used Figure 2 to investigate the action of dilute sulphuric(VI) acid on some metals. Beaker I and II contained equal volumes of dilute sulphuric(VI) acid. To beaker I, a clean iron rod was dipped and to beaker II, a clean copper rod was dipped.
      KCSE 2017 Chem PP2 Q3a
      1. Why was it necessary to clean the metal rods?   (1 mark)
      2. Describe the observations made in each beaker.
        Beaker I: ...............   (1 mark)
        Beaker II: ................    (1 mark)
      3. Explain the observations in (a) (ii).    (2 marks)
    2. Figure 3 shows the apparatus used to burn hydrogen in air. Use it to answer the questions that follow.
      KCSE 2017 Chem Q3b
      1. State the role of substance X.    (1 mark)
      2.  Give the name of the substance that could be used as X.    (1 mark)
      3. State the role of the suction pump.,(1 mark)
      4. Name the product Y formed.    (1 mark)
      5. Give a simple physical test to prove the identity of Y.     (1 mark)
      6. State the difference between 'dry' and 'anhydrous'.,(2 marks)
  4. W is a colourless aqueous solution with the following properties:
    1. It turns blue litmus paper red.
    2. On addition of cleaned magnesium ribbon, it gives off a gas that burns with a pop sound.
    3. On addition of powered sodium carbonate, it gives off a gas which forms a precipitate with calcium hydroxide solution.
    4. When warmed with copper(II) oxide powder, a blue solution is obtained but no gas is given off.
    5. On addition of aqueous barium chloride, a white precipitate is obtained.
      1.
        1. State what properties (1) and (III) indicate about the nature of W.   (1 mark)
        2. Give the identity of W.    (1 mark)
        3. Name the colourless solution formed in (II) and (III).  (2 marks)
        4. Write an ionic equation for the reaction indicated in (V).   (1 mark)
      2. Element V conducts electricity and melts at 933K. When chlorine gas is passed over heated V, it forms a vapour that solidifies on cooling. The solid chloride dissolves in water to form an acidic solution. The chloride vapour has a relative molecular mass of 267 and contains 19.75% of V. At a higher temperature, it dissociates to a compound of relative molecular mass 133.5. When aqueous sodium hydroxide is added to the aqueous solution of the chloride, a white precipitate is formed which dissolves in excess alkali. (V=27.0; C1 = 35.5)
        1.
          1. Determine the:
            1. empirical formula     (2 marks)
            2. molecular formula       (2 marks)
          2. Draw the structure of the chloride vapour and label the bonds.       (1 mark)
        2. Write an equation for the reaction that form a white precipitate with sodium hydroxide. (1 mark)
  5. When 0.048 g of magnesium was reacted with excess dilute hydrochloric acid at room temperature and pressure, 50 cm3 of hydrogen gas was collected. (Mg = 24.0; Molar gas volume=24.0 dm3)
    1. Draw a diagram of the apparatus used to carry out the experiment described above.   (3 marks)
    2. Write the equation for the reaction.   (1 mark)
    3. Calculate the volume of hydrogen gas produced.    (2 marks)
    4. Calculate the volume of 0.1M hydrochloric acid required to react with 0.048 g of magnesium  (3 marks)
  6. The following steps were used to analyse a metal ore,
    1. An ore of a metal was roasted in a stream of oxygen. A gas with a pungent smell was formed which turned acidified potassium dichromate(VI) green.
    2. The residue left after roasting was dissolved in hot dilute nitric(V) acid. Crystals were obtained from the solution.
    3. Some crystals were dried and heated. A brown acidic gas and a colourless gas were evolved and a yellow solid remained.
    4. The solid was yellow when cold.
    5. The yellow solid was heated with powered charcoal. Shiny beads were formed.
      Name the:
      1. gas formed when the ore was roasted in air.     (1 mark)
      2. gases evolved when crystals in step (iii) were heated.    (2 marks)
      3. yellow solid formed in step (iii).     (1 mark)
      4. shiny beads in step (iv).   (1 mark)
      5. The yellow solid from procedure (iii) was separated, dried, melted and the melt electrolysed using graphite electrodes.
        1. Describe the observations made at each electrode.   (2 marks)
        2. Write the equation for the reaction that took place at the anode.    (1 mark)
      6. Some crystals formed in step ) were dissolved in water, and a portion of it reacted potassium iodide solution. A yellow precipitate was formed.  Write an ionic equation for this reaction.   (1 mark
      7. To another portion of the solution from (f), sodium hydroxide solution was added drop by drop until there was no further change. Describe the observation made.    (1 mark)
      8. To a further portion of the solution from (f), a piece of zinc foil was added.
        1. Name the type of reaction taking place.    (1 mark)
        2. Write an ionic equation for the above reaction.  (1 mark)
  7.
    1.
      1. The decay rates of a sample of a radioisotope of bismuth at different time intervals is indicated in the folllowing table.
         Tlime hours   0   5   10   15   20   25
         Rate of disitegration in counts s−1   730     570   455    365     292   230
      2. Draw a graph of disintegration rate against time.   (3 marks)
      3. Determine the half-life of bismuth.   (1 mark)
      4. What would be the effect on the curve if half the amount of sample of bismuth were used.    (1 mark)
    2. Radioactivity has several applications. State one application of radioactivity in:
      1. Medicine   (1 mark)
      2. Agriculture  (1 mark)
      3. Tracers   (1 mark)
      4. Nuclear power station   (1 mark)
    3. State two dangers associated with radioactivity.    (2 marks)

MARKING SCHEME

  1.
    1.
      1. CnH2n−2 - alkyne  ✓1
      2. CnH2n- alkene  ✓1
    2.
      1. Solid because it is saturated.  ✓1
      2.
        1. CH2OHCHOHCH2OH  ✓1
        2. CH2(CH2)16COONa  ✓1
        3. Cleaning agent /cleansing agent ✓1
    3.
      1. Calcium carbide  and water.  ✓½
      2. CaC2(s) +H2O(s) → Ca(OH)2(aq) +C2H2(g) ✓1
    4.
      1. When many unsaturated molecules called monomers combine to form a giant/macro molecule of high relative molecular mass called a polymer.
      2.

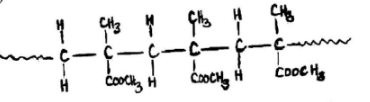

        KCSE 2017 Chem PP2 ans1d
      3.
        • Used as a glass substitute;  ✓1
        • Electronic instruments housing:
        • Wind screen;
        • Safety glasses;
        • vehicle headlamps;
        • Bulletproofing
      4.
        • Emit toxic fumes when burned affecting human life. ✓½
        • They are non-biodegradable hence pollutes the environment ✓½
        • Accelerates fires when burned/highly flammable.
          (Any two correct @½ mk)
  2.
    1.
      1. G ✓1-Contains delocalized electrons ✓1 present in solid and molten state.
      2. In solid state, the ions are rigidly held in position and cannot move, hence will not conduct.  ✓1
        In molten/aqueous state, the ions are mobile and will be able to conduct electric current.  ✓1
    2.
      1.
        • The blue electrolyte fades and finally changes from blue to colourless.  ✓½
        • Effervescence / bubbles of a colourless gas.  ✓½
        • A brown deposit forms on the cathode.  ✓½
      2. 40H(aq) → O2(g) +2H2O(l) + 4e  ✓1
      3. The pH will change from 6 to less than 4 i.e. the resulting solution will be acidic. ✓½
    3. With copper electrodes:
      Anode will go into solution as copper ions hence it decreases in mass/size.  ✓½
      Brown deposit forms at the cathode hence the cathode increases in mass.  ✓½
    4.
      1. This is the coating of an article/object with another metal by electrolytic method/electrolysis. ✓1
      2. To prevent articles from rusting and to make them attractive.
      3. Quantity of electricity = 3/2 x 60 x 60 x0.6  ✓1
                                        = 3240 coulombs.  ✓½
        108g Ag = 96,500 coulombs
                   ? = 3240 coulombs
        =108 x 3240  ✓1
              96,500
         = 3.626g ✓½
        OR
        = 0.6 x 1.5 x 60 x 108  ✓2½
                    96,500
        = 3.626 g  ✓½
  3.
    1.
      1. To remove oxide layer on the metal.  ✓1
      2. Beaker I:
        • Bubbles of a colourless gas / effervescence; ✓1
        • Solution turns green; ✓1
        • the size of iron rod decreases.  ✓1
          Beaker II:
        • The solution remained colourless.   ✓1
        • No bubbles/effervescence
      3. Beaker 1:
        Iron is above hydrogen in the reactivity
        Series therefore will react with the acid to form iron(II) sulphate (FeSO4) which is green and produces hydrogen gas.  ✓1
        OR
        Iron is more reactive than hydrogen hence it reacts with sulphuric(VT) acid to produce hydrogen gas and iron(III) sulphate which is green
        Beaker II:
        Copper is below hydrogen hence no reaction will take place.  ✓1
    2.
      1. To dry hydrogen gas.  ✓1
      2. Calcium oxide /anhydrous calcium chloride /silica gel.  ✓1
        (Accept the formulae)
        (Any one correct @ 1mk)
      3. To suck the products of the burning into the boiling tube  ✓1
      4. Water ✓1
      5. Boil the liquid. If it boils at 100°C/ constant, then this confirms that it is water.  ✓1
        OR
        Freeze the liquid. If it freezes at 0°C, then this confirms that it is water  ✓1
        Determine density of liquid, if it is 1g/cm then it is water.
        (Accept any one correct @ 1mk)
      6. Dry-The substance is free from moisture.  ✓1
        Anhydrous - The substance has lost its water of crystallization through heating, to form anhydrous substances.  ✓1
  4.
    1.
      1. W is acidic.  ✓1
      2. Sulphuric(VI) acid, H2SO4  ✓1
      3. (II) - Magnesium sulphate.   ✓1
        (III) - Sodium sulphate. ✓1
      4. Ba2+ (aq) + SO42− (aq) + BaSO4(s) ✓1
    2.
      1.
        1.                     V                Cl
          Mass (g)    19.75           80.25
          RAM             27             35.5
          Moles         19.75           80.25 ✓½
                             27               35.5
          ÷smaller     0.73            2.26 ✓½
                            0.73            0.73
                              1                3  ✓½
          Empirical - VCI3 ✓½
        2. Molar mass = 267
          Empirical mass VCI3 = 27 + 35.5 x 3
                                         = 27+ 106.5
                                         = 133.5  ✓½
          (Empirical mass) n = molecular mass
          133.3n = 267
                  n = 267 ÷ 133.5
                  n = 2  ✓1
          (VCl3)2 =V2Cl6
          ∴ Molecular formula = V2Cl6  ✓½
      2.

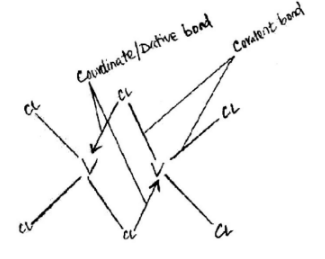

        KCSE 2017 Chem PP2 ans4a
      3. VCl3(s) + 3NaOH(aq) →  V(OH)3(s) + 3 NaCl(aq)  ✓1
        OR
        V2Cl6(s)+ 6NaOH(aq) →  2V(OH)3(s) + 6 NaCl(aq)
        OR
        V3+ + 3(OH)3(aq) →  V(OH)3(s)
  5.

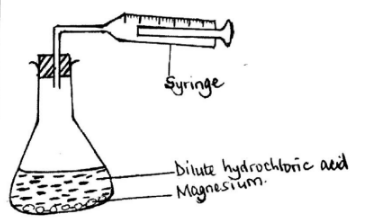

    1. KCSE 2017 Chem PP2 ans5a
      Workability - 1 mark
      Measurement of the gas-1 mark
      Labeling of reactants and gas - 1 mark
    2. Mg(s) + 2HCl(aq) → MgCl2(aq) + H2(g)  ✓1
    3. Mg(s) +2HCl(aq) → MgCl2(aq) +H2(g)
      Moles of Mg =  0.048 = 0.002  ✓½
                              24
      Moles of Mg = Moles of H2 =0.002 ✓½
      Volume of hydrogen gas = 0.002 x 0.048 litres ✓½
                                          = 0.048dm3 ✓½
    4. Moles of HCI = 2 x 0.002✓½ = 0.004.✓½
      volume x 0.1 = 0.004  ✓½
            1000
      Volume  =  0.004 x 1000  ✓½
                             0.1
      4/0.1 = 40cm3  ✓1
  6.
    1. Sulphur(IV) oxide  ✓1
    2. Oxygen and nitrogen(IV) oxide. ✓1
    3. Lead(II) oxide/PbO. ✓1
    4.  Lead ✓1
    5.
      1. Grey beads formed at cathode ; ✓1
        Bubbles/ effervescence.of a colourless gas at the anode ✓1
      2. 2O2−(l) → 2O2(g) + 4e ✓ 1
    6. Pb2+ (aq) + 2l (aq) → Pbl2(s). ✓1
    7. A white precipitate ✓½ was formed which dissolves in excess to form a colourless solution. ✓½
    8.
      1. Displacement/Redox reaction ✓ 1
      2. Pb2+(aq) + Zn(s) → Pb(s)+Zn2+ (aq). ✓ 1
  7.
    1.
      1.
        KCSE 2017 Chem PP2 Q7
        Plotting
        Scale
        Labelling
      2. 600 counts to 300 counts
        Half-life = 19.5 − 4 = 15.5 hours ± 0.1  ✓ 1
        OR
        500 counts to 250 counts
        23.0 − 7.5 = 15.5
      3. It would have no effect on the curve as the quantity of bismuth does not affect half-life. ✓ 1
    2.
      1. Applications in medicine
        • Sterilizing surgical instruments.
        • Destroying cancerous tissues during radiotherapy ✓ 1
        • Provide power to the heart pace setters.
        • (Any one correct @ 1mk)
      2. Applications in agriculture
        • Monitor photosynthesis and other related processes.
        • Preservation of foodstuffs, by exposing Micro-organisms to gamma rays. ✓ 1
        • Rate of absorption of a fertilizer by the plant.
          (Any one correct @ 1mk)
      3. Applications in Tracers
        • Detecting leakages in underground water or oil pipes.  ✓ 1
      4. Applications in Nuclear power stations.
        • To generate electricity.  ✓ 1
    3. Dangers of radioactivity
      • Long term exposure causes genetic mutation; ✓ 1
      • Radioisotopes can be used as weapon of mass Destruction; ✓ 1
      • Causes skin cancer;
      • When tested causes environmental pollution.
        (Any 2 correct @ 1 mk)

Download KCSE 2017 Chemistry Paper 2 with Marking Scheme.


Tap Here to Download for 50/-





Join our whatsapp group for latest updates
Read 307 times Last modified on Wednesday, 24 November 2021 11:54
Print PDF for future reference
