INSTRUCTIONS TO THE CANDIDATE:

  • This paper consists of two sections A and B.
  • Answer all the questions in section A and B in the spaces provided
  • All working must be clearly shown in the spaces provided.
  • Non-programmable silent electronic calculators and KNEC mathematical tables may be used.

SECTION A

  1. A student used the measuring instrument shown below to measure the thickness of a cylindrical wire, If the wire is 10cm long, find the volume of the wire. (3mks)
    Phys F4 PP1 Q1 T2 opener 2021
  2. The figure below shows two containers of equal volume but of different diameters.
    Phys F4 PP1 Q2 T2 opener 2021
    Equal volume of hot water was put in both containers. Explain why it cools faster in the Wider container than in the narrower one. (1mk)
  3. A body in a uniform circular motion experiences acceleration despite moving at a constant speed. Explain. – (1mk)

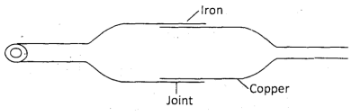

  4. The diagram below shows a-metal tube made of iron and copper. The joint is tight at room temperature.
    Phys F4 PP1 Q4 T2 opener 2021
    Explain how you would separate the two by changing the temperature given that copper expands more than iron for some change in temperature. (2mks)
  5. Figure below shows a pulley system being used to raise a lead.
    Phys F4 PP1 Q5 T2 opener 2021
    if the effort applied is 28N and the load lifted is l00N, determine the efficiency of the system. (3mks)
  6.
    1. What is surface tension? (1mk)
    2. The figure below shows a funnel dipped into a liquid soap solution.
      Phys F4 PP1 Q6b T2 opener 2021
      Explain what happens to the soap bubble when the funnel is removed. (1mk)
  7. A trolley of mass 0.5kg moving with a velocity of I .2ms-1collides in elastically with a second trolley of mass 1.5kg moving in the same direction with a velocity of 0.2ms-1.Determine the velocity of the trolleys after collision. (2mks)
  8. Highlight one fact which shows that heat from the sun does not reach the earth surface by convection. (1 mk)
  9. State one reason why mercury is preferred as a barometric liquid and not water. (1mk)
  10. State one reason why racing cars are stable. (1mk)
  11. Find the velocity ratio of the following gear wheels. (2mks)
    Phys F4 PP1 Q11 T2 opener 2021
  12. A stone and a feather are dropped from rest from a building 20m tall. If they reach the ground at the same time, find.
    1. The velocity with which they reach the ground. (Take g=l0m/s2) (2mks)
    2. The condition under which they fall. (1mk)
  13. The forces act on a trolley as shown below.
    Phys F4 PP1 Q13 T2 opener 2021
    Find the acceleration of the trolley. (2mks)
  14. On the axes below, sketch the graph of density of water against temperature. ( 1mk)
    Phys F4 PP1 Q14 T2 opener 2021

SECTION B (55MKS)

    1. A car is negotiating unbanked circular track. State one factor that will determine the critical speed of the car. (1mk)
    2. Given that the ear above has a mass of 1000kg and the circular path has a radius of 25m. Determine the maximum speed with which the motorist can travel so as not to skip the frictional force between the tyres and the road is 6500N. (3mks)
    3. A 200g mass tied to a string is being whirled in a vertical circle of radius 32cm with uniform speed, At the lowest position the tension in the siring is 10.5N. Calculate:
      1. The speed of the mass (2mks)
      2. The tension in the string when the mass is at the uppermost position of the circular path (Take g = 10m/s2) (2rnks)

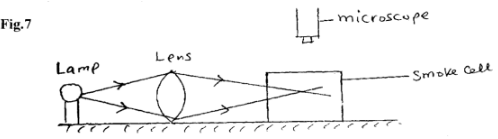

  1. Brownian motion of smoke particles can be studied by using the apparatus shown in figure.7. To observe the motion, some smoke is closed in the smoke cell and then observe through the Microscope.
              Phys F4 PP1 Q16 T2 opener 2021
    1. Explain the role of the smoke particles, lens and microscope in the experiment. (i) Smoke cell. (1 mk)
      1. Lens (1 mk)
      2. Microscope (1mk)
    2. State and explain the nature of the observed motion of the smoke particles. (2rnks)
    3. State what will be observed about the motion of the smoke particles if the temperature surrounding the smoke cell is raised slightly. (1 mk)
  2.
    1. State what is meant by an ideal gas (1mk)

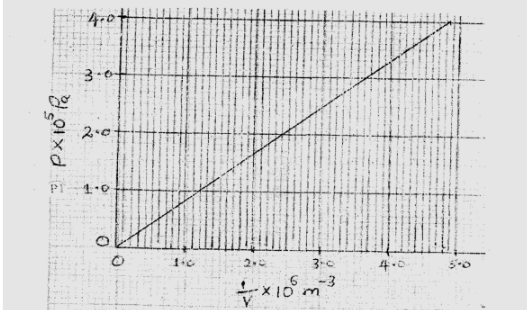

    2. The pressure acting in a gas in a container was changed steadily while the temperature of the gas was maintained constant. The value of volume V of the gas measured various values of pressure. The graph in the figure A shows the relation between the pressure. P1 and the reciprocal of volume 1/V
               Phys F4 PP1 Q17b T2 opener 2021
      1. Given that the relation between the pressure P1 and the value, V1 of the gas is given by PV = k Where k is a constant, use the graph to determine the value  (3mks)
      2. What physical quantity does K represent? (1mk.)
      3. State one precaution you would take when performing such an experiment. (1mk)
    3. A gas occupies a volume of 4000 litres temperature of 37°C and normal atmosphere pressure. Determine the new volume of the gas if it is heated at constant pressure to a temperature of 67°C (normal atmosphere pressure P = 1.01 x 105pa) (3marks)
  3.
    1. State Archimedes Principal (1mk)
    2. The figure 9 shows rectangular metal block of density 10500kgm-3and dimensions 30cm x 20cm x 20cm suspended inside a liquid of density 1 200kgm-3 by a string attached to appoint above the liquid. The three forces acting on the block are; the tension I. on the string, the weight W, of the block, and the up thrust ,U, due to the liquid.
               Phys F4 PP1 Q18b T2 opener 2021
      1. Write an expression relating T, U and W when the block is in equilibrium inside the liquid. (1 mk)
      2. Determine the weight, W. of the block (3 mks)
      3. Determine the weight of the liquid displaced by the fully submerged block. (2rnks)
        Hence determine the tension, 1, in the string (1mk).
    3. A certain solid of volume 50cm3 displaces 10cm3 of kerosene) (density 800 kgm-3) when floating. Determine the density of the solid. (3mks)
  4.
    1. Define angular displacement. (1 rnk)
    2. A mass of 20 g is 14 cm from the centre of a compact disc rotating at 75 revolutions per minute. Determine:
      1. the angular speed (2 mks)
      2. the centripetal acceleration (2 rnks)
    3. Shown in the figure below are dots which were made by a ticker timer-tare attached to a trolley. Scale 1. 5
      Phys F4 PP1 Q19c T2 opener 2021
      The frequency of the timer was 50 Hz. Determine for the trolley:
      1. The velocities between AB and BC (3mk)
      2. The deceleration of the trolley. (3mks)
  5.
    1. What is meant by specific heat capacity? (1 mk)

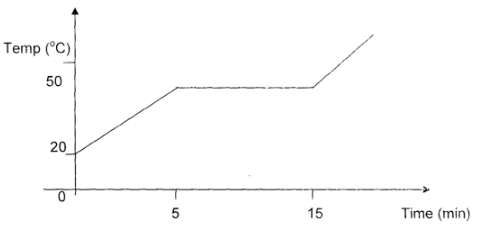

    2. A heater rated 1 .25 kW is used to heat 3 kg of a substance which is initially in solid state.
        Phys F4 PP1 Q20b T2 opener 2021
      Use the information in the graph to find:
      1. the specific heat capacity of the substance in solid form. (3 mks)
      2. the latent heat of fusion of the substance. (2 mks)
      3. The time taken for the temperature to reach 90°C, assuming specific heat capacity does not change . (3 mks)
      4. Suggest a reason why the actual time may be longer. (1 mk)

MARKING SCHEME

  1. 2.50+0.45=2.95mm Reading ✔1
    22/7 × 10 × (0.295/2)2 = 0.684
  2. Large surface area exposed to the atmosphere leading to high evaporation rate taking away latent hea of evaporation. ✔1
  3. Instantaneous velocity at any point is different thus acceleration while the distance covered by the body per unit time is constant (constant speed)
  4. Cooling the two metals further (reducing the temperature). ✔1
  5. V.R =4.
    M.A = 100N ✔1
               28
    Efficiency = M.A x100
                      V.R
    = 100÷4x100✔1
        28
    100   x100 89.28% ✔1
        28x4
  6.
    1. The force of liquid surface that make it to behave like a thin stretched skin. ✔1
    2. The soap film behaves as if its surface is tightly stretched. As it tries to make its surface as well as possible it rises up the funnel. ✔1
  7. M1V1 + M2V2 = MV
    0.5x1.2+1.5x0.2=2v ✔1
    0.6+ 0.3 = 2v
    V= 0.9 =0.4m/s ✔1
           2
  8. Air molecules near the earth’s surface are denser than the air molecules further above the earth. When heating by sun heat, they became lighter and move upward not downward.
  9.
    • Mercury is highly denser than water hence require a small mercury column height.
    • Mercury doesn’t wet glass (Any one) ✔1
  10. The care are made with a heavy base ✔1 (low C.O.G)
  11. Velocity ration = 14/9 ✔1 =1.56 ✔1
  12.
    1. V2 = 2gs = 2x10x20 =400 ✔1
      V =20m/s ✔1
    2. No viscous drug/zero air resistance ✔1
  13. Resultant force = 6 − 4 = Ma. ✔1
                                  2a = 2
                                 a= 1m/s2 ✔1

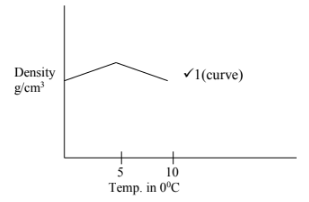

  14.
    Phys F4 PP1 Ans14 T2 opener 2021
  15.
      • Friction force
      • Radius of the circular tack. Any one ✔1.
    1. Fr = MV2  ✔1
               r
      6500 = 1000V2  ✔1
                    25
      V2 = √162.5 = 12.75m/s
    2.
      1. tension at bottom = MV+ Mg
                                       r
        10.5 = 0.2V2 + 0.2 x 10  ✔1
                   0.32
        V = 3.688m/s ✔1
      2. Tension at top =  MV− Mg
                                   r
        0.2x(2.688)2− 0.2 x 10
             0.32
        = 8.5 – 2.0
        = 6.5 ✔1
  16.
    1.
      1. Smoke particle - For visibility of air movement ✔1
      2. Lens-focus light to a point in the smoke cell ✔1
      3. Microscope. -magnification of smoke particles ✔1
    2. Smoke particles observed moving at random ✔1
      the smoke particles move at random due to the bombardment air molecules at random ✔
      (Brownian motion)
    3. The smoke particles movement is vigorous thus the air molecules ✔1.
  17.
    1. Gas that obey gas law ✔1
    2.
      1.   2.0 x 105 − 1.0x101/12 × 10−1
        2.4 × 106 × 1.2 ×106
        = 0.0833pa m3    Extract value from graph.
      2. Reciprocal of pressure per unit volume. ✔1
      3. The container to be thick enough to withstand the exerted pressure ✔1
        V1 = V2   ✔1
        T   T2
        4000 V2
         310     340  ✔1
        V= 4387.097litres ✔1
  18.
    1. When a body is totally or partially immersed in a fluid, it experiences up thrust force which is equal to the weight of the fluid displaced.✔1
    2.
      1. W = T + U ✔1
      2. W =mg = evg ✔1 =10500 x 0.3 x0.2 x0.2 x 10✔1
        = 1260 N ✔1
      3. weight of liquid = ev = 1200 x (0.3 x 0.2 x 0.2) x10
        displaced (U) =144N ✔1
        T = W−U = 1260 −144 =1116N ✔1
    3. Mass = 800 x 0.00001 ✔1
      =0.008kg.
      Density = M/V = 0.008kg  =  0.008   = 16kg / m3
                               50×10−6    0.0005. ✔1.
  19.
    1. Angle in radians through a point as the object is Rotated in a circular manner ✔1
    2.
      1. W = 2x3.142x75 = 17.855 rad/s ✔1
                     60
      2. a = wr = 7.855 × 0.14 ✔1 = 1.0997rad/s ✔1
        1/50 = 0.02 sec.  ✔1
    3.
      1. VAB =  6 × 5  = 500cm/s =5m/s ✔1
                  0.02x3
        VBC = 6 × 5     =300cm/s  2m/s  ✔1
                  0.02x5
      2. 300 − 500 or    3 - 5
          0.02x8          0.02x8   ✔1
        = −1250cm/s2 or −12.5m/s2 ✔1
  20.
    1. Quantity of heat energy required to raise a unit mass of a substance a temperature by Kelvin. ✔1
    2.
      1. Q = MCAᶿ ✔1= 3xc x (50−20) =1.25x1000x5x60 ✔1
        c = 6250 J/kgk ✔1
      2. L=Ml = 1.25x10x60x1000 =  750kj = 750,000 joules.
                            1000
      3. 6250 x (90−50) x 3 = 1.25 x 1000 x t ✔1
        t = 600sec = 10min ✔1
        time taken =15 +10 =25min.✔1
      4. Liquids have high specific heat capacity than solids ✔1
