INSTRUCTIONS TO CANDIDATES
- Answer ALL the questions in the spaces provided in the question paper
- You are supposed to spend the first 15 minutes of the 2 ½ hours allowed for this paper reading the whole paper carefully before commencing your work.
- Marks are given for a clear record of the observations actually made.
- Non-programmable silent electronic calculators and KNEC Mathematical tables may be used except where stated otherwise.
QUESTION 1
You are provided with the following: -
- 2 new size D dry cells
- A cell holder
- A switch
- An ammeter
- Five connecting wires
- Wire mounted on the metre rule labelled X
- A micrometer screw gauge (to be shared)
- A Voltmeter
Proceed as follows- Measure the diameter of the wire three times and determine the average diameter,
d ……………….……………………………………… mm (1 mark)
d………………………………………………………….. m (1 mark) - Determine the cross-section area of the wire,
A………………………………………………………….. m2 (1 mark) - Connect the circuit as shown in the figure 1 below.
- Measure the voltage Efrom the Voltmeter, before closing the switch.
E = .......................................................................... V (1 mark) - Adjust the length, lof the wire to 0.20m, close the switch, S and read the value of current and record in the table 1 below.
Table 1
Length, L (m) 0.20 0.30 0.40 0.50 . 0.60 0.70 Current, I (A) 1/L (A−1) - Repeat the procedure in (e) above for the values of lengths given. (6 marks)
- Calculate the value of 1/L and record in the table above. (1 mark) (
- On the grid provided plot a graph ofI1/L(y axis − ) against L (m) (4 marks)
- Determine the gradient of the graph. (2 marks)
- Given that the equation 1/L = P/EAL + r/E holds for the graph, determine the value of ρ and r (3 marks)
- Measure the diameter of the wire three times and determine the average diameter,
QUESTION 2
PART A
You are provided with the following:
- A lens and a lens holder.
- A screen with cross wires
- A candle
- A metre rule.
Proceed as follows:- Arrange the lightened candle, the lens and the screen as shown in figure 2. Adjust the position of the screen until a sharp inverted image of the candle is formed on the screen.
- Measure the image distance v
v = …………………………… cm (1 mark) - Determine the focal length of the lens using the formula
f = uv (2 marks)
u + v
- Measure the image distance v
- Now arrange the lighted candle, the screen with cross wires and the lens as shown in figure 3. Ensure that the centre of the lens, the cross-wires, and the candle flame lie on the same horizontal line. The candle flames should be placed close to the cross-wires for better illumination.
- Adjust the position of the lens until a sharp image of the cross-wire is formed on the screen next to the cross wires. (Hint: You have to rotate the lens slightly about a vertical axis so that the image of the cross-wires falls on the screen next to the cross wires and not on the cross-wires.)
Measure the distance d, between the lens and the screen.
d=………………………………. cm (1 mark) - Determine the values of L and X:
- L = df (2 marks)
f − d - X = L + 1 (2 marks)
2f
- L = df (2 marks)
- Adjust the position of the lens until a sharp image of the cross-wire is formed on the screen next to the cross wires. (Hint: You have to rotate the lens slightly about a vertical axis so that the image of the cross-wires falls on the screen next to the cross wires and not on the cross-wires.)
- Arrange the lightened candle, the lens and the screen as shown in figure 2. Adjust the position of the screen until a sharp inverted image of the candle is formed on the screen.
PART B
You are provided with the following:
- A metre rule
- A knife edge
- One 50g mass and a 100 g mass
- Two pieces of threads each 30 cm long
- Some water in a beaker
- Liquid L in a beaker
- Tissue paper
Procced as follows
- Balance the metre rule on the knife edge and record the reading at this point
Balance point = ……………………………………cm mark (1 mark)
For the rest of this experiment the knife edge must be maintained at this position. - Set up the apparatus as shown in the figure 4
Figure 4
The balance is obtained by adjusting the position of 100g mass when 50g mass is fully immersed in water. Record the values of X and D.
X =…………………………………………………… (1 mark)
D =…………………………………………………… (1 mark) - Using the principle of moments;
- determine the weight W1of the 50g mass in water (2 marks)
- determine the Upthrust UW in water (1 mark)
- Remove the 50 g mass from the water and dry it using a tissue paper.
Keeping D constant, adjust the position of 100g mass until the metre rule is balanced and record the value of distance X when the 50g mass is fully immersed in liquid L.
X =…………………………………………………….. (1 mark)- Determine the weight W2 of the 50g mass in liquid L. (2 marks)
- Determine the Uphtrust UL in the liquid. (1 mark)
- Determine the relative density R.D of the liquid L, given that R.D = UL (1 mark)
UW - Find the density of liquid L in S.I unit (1 mark)
CONFIDENTIAL
QUESTION 1
- 2 new size D dry cells in a cell holder
- A switch
- Seven connecting wires at least two with crocodile clips
- Voltmeter 0-3V or 0-5V
- Ammeter 0-2.5A
- Nichrome wire mounted on a mm scale labelled X
- A micrometer screw gauge (to be shared)
QUESTION 2
PART A
- A lens of focal length 10 cm and a lens holder.
- A screen with cross wires
- A white screen
- A candle
- A metre rule.
PART B
- A metre rule
- A knife edge
- One 50g mass and a 100 g mass
- Two pieces of threads each 30 cm long
- Some water in a beaker
- 200ml of kerosene in a beaker labelled Liquid L
- Tissue paper
MARKING SCHEME
QUESTION 1
You are provided with the following: -
- 2 new size D dry cells
- A cell holder
- A switch
- An ammeter
- Five connecting wires
- Wire mounted on the metre rule labelled X
- A micrometer screw gauge (to be shared)
- A Voltmeter
Proceed as follows- Measure the diameter of the wire three times and determine the average diameter,
d ……………0.30 ± 0.04 ✓1….……………………………………… mm (1 mark) 2 d.p a must
d…………0.30/1000 ✓½ = 3.0 × 10−4 ✓½……………………………………………….. m (1 mark) Working must be shown( students value to be used) - Determine the cross-section area of the wire,

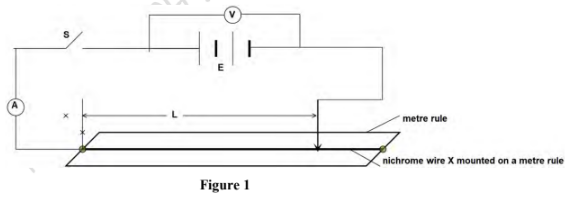

A……22/7 × (1.5 × 10−4)2 ✓½ = 7.071 × 10−8… ✓½………………………………………………….. m2 (1 mark) Working must be shown - Connect the circuit as shown in the figure 1 below.
- Measure the voltage Efrom the Voltmeter, before closing the switch.
E = ............3.0 ± 0.2.. ✓½............................................................ V (1 mark) 1 d.p a must - Adjust the length, lof the wire to 0.20m, close the switch, S and read the value of current and record in the table 1 below.
Table 1
Length, L (m) 0.20 0.30 0.40 0.50 . 0.60 0.70 Current, I (A)
2 d.p ±0.020.60 0.52 0.44 0.40 0.36 0.32 1/L (A−1) 1.667 1.923 2.273 2.500 2.778 8.333 - Repeat the procedure in (e) above for the values of lengths given. (6 marks)
- Calculate the value of 1/L and record in the table above. (1 mark)

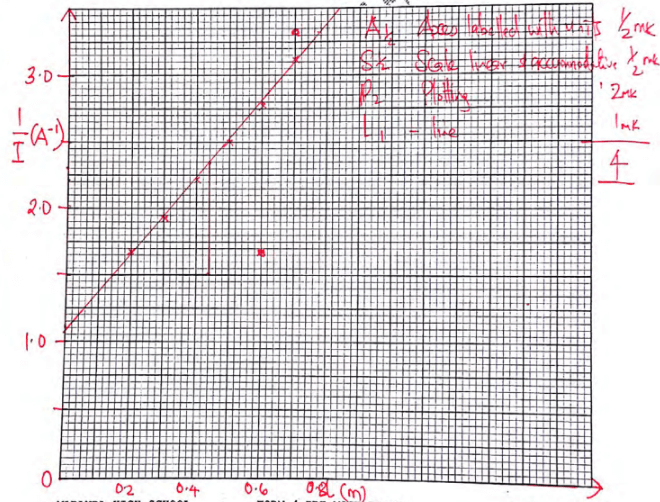

- On the grid provided plot a graph ofI1/L(y axis − ) against L (m) (4 marks)
- Determine the gradient of the graph. (2 marks)
gradient = Δ ¹/I (A−1) = (2.35 − 1.5) A−1 ✓½
ΔL(m) (0.44 − 0.14)m ✓½
= 2.833A−1m−1 OR 2.833 (Am)−1 ✓1 - Given that the equation 1/L = P/EAL + r/E holds for the graph, determine the value of ρ and r (3 marks)
ρ = gradient ✓½
EA
ρ = 2.833(Am)−1
3.0V × 7.071 × 10−8 m2 (substitution)
ρ = 2.833 A −1m−1 × 3.0V × 7.071 × 10−8m2
ρ = 6.00964 × 10−7Ωm ✓½ (accuracy)
r/E - y-intercept ✓½ (equation)
r/3.0V = 1.1A−1 ✓½ (substitution)
r = 3.3 Ω ✓½ (accuracy0
- Measure the diameter of the wire three times and determine the average diameter,
QUESTION 2
PART A
You are provided with the following:
- A lens and a lens holder.
- A screen with cross wires
- A candle
- A metre rule.

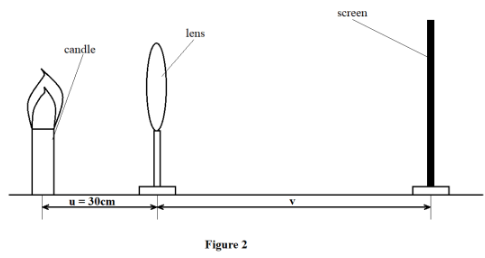

Proceed as follows:- Arrange the lightened candle, the lens and the screen as shown in figure 2. Adjust the position of the screen until a sharp inverted image of the candle is formed on the screen.
- Measure the image distance v
v = ……15.0 ± 2.0 ✓1……………………… cm (1 mark) 1 d.p a must - Determine the focal length of the lens using the formula
f = uv (2 marks)
u + v
30 × 15.0 ✓1
30 + 15.0
= 10cm ✓1
- Measure the image distance v

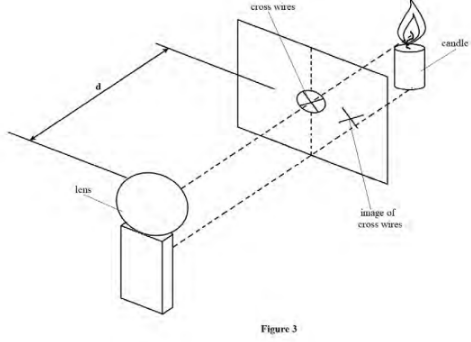

- Now arrange the lighted candle, the screen with cross wires and the lens as shown in figure 3. Ensure that the centre of the lens, the cross-wires, and the candle flame lie on the same horizontal line. The candle flames should be placed close to the cross-wires for better illumination.
- Adjust the position of the lens until a sharp image of the cross-wire is formed on the screen next to the cross wires. (Hint: You have to rotate the lens slightly about a vertical axis so that the image of the cross-wires falls on the screen next to the cross wires and not on the cross-wires.)
Measure the distance d, between the lens and the screen.
d=…………5.0 ± 4.0 ✓1……………………. cm (1 mark) 1 d.p is a must - Determine the values of L and X:
- L = df (2 marks)
f − d
L = 5.0 × 10 ✓1
10 − 5
= 10cm ✓1 - X = L + 1 (2 marks)
2f
X = 10cm + 1 ✓1
2 × 10cm
x = 1.5cm ✓1
- L = df (2 marks)
- Adjust the position of the lens until a sharp image of the cross-wire is formed on the screen next to the cross wires. (Hint: You have to rotate the lens slightly about a vertical axis so that the image of the cross-wires falls on the screen next to the cross wires and not on the cross-wires.)
- Arrange the lightened candle, the lens and the screen as shown in figure 2. Adjust the position of the screen until a sharp inverted image of the candle is formed on the screen.
PART B
You are provided with the following:
- A metre rule
- A knife edge
- One 50g mass and a 100 g mass
- Two pieces of threads each 30 cm long
- Some water in a beaker
- Liquid L in a beaker
- Tissue paper
Procced as follows
- Balance the metre rule on the knife edge and record the reading at this point
Balance point = …………50.0 ± 0.5 ✓1…………………………cm mark (1 mark) 1 d.p is a must
For the rest of this experiment the knife edge must be maintained at this position. - Set up the apparatus as shown in the figure 4

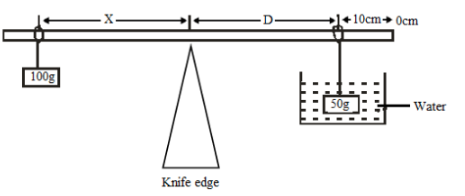

Figure 4
The balance is obtained by adjusting the position of 100g mass when 50g mass is fully immersed in water. Record the values of X and D.
X =……………17.5 ± 0.5cm… ✓1…………………………………… (1 mark) 1 d.p is a must
D =…………40.0 ± 1.0cm… ✓1……………………………………… (1 mark) 1 d.p is a must - Using the principle of moments;
- determine the weight W1of the 50g mass in water (2 marks)
W1 = 1 × 0.175 ✓½
0.4
= 0.4375N ✓1 - determine the Upthrust UW in water (1 mark)
UW = 0.5 − 0.4375 ✓½
= 0.0625 N ✓½
- determine the weight W1of the 50g mass in water (2 marks)
- Remove the 50 g mass from the water and dry it using a tissue paper.
Keeping D constant, adjust the position of 100g mass until the metre rule is balanced and record the value of distance X when the 50g mass is fully immersed in liquid L.
X =…………18.0 ± 0.5 ✓1………………………….. (1 mark) 1 d.p is a must- Determine the weight W2 of the 50g mass in liquid L. (2 marks)
W2 = 1 × 0.18 ✓1
0.4
= 0.45N ✓1 - Determine the Uphtrust UL in the liquid. (1 mark)
UL = 0.5 − 0.45 ✓½
= 0.05N ✓½
- Determine the weight W2 of the 50g mass in liquid L. (2 marks)
- Determine the relative density R.D of the liquid L, given that R.D = UL (1 mark)
UW
R.D = 0.05 ✓½
0.0625
= 0.8 ✓½ - Find the density of liquid L in S.I unit (1 mark)
ΡL = 0.8 × 1000 ✓½
= 800kg/m3 ✓½
