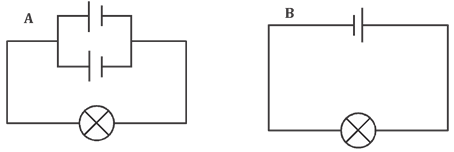

In the circuit diagram shown in figure 3 the lamps are identical and cells are also identical.
PhycF4T1P2Q8
State with a reason, in which circuit the lamp will be lit for a longer period.

1 Answer

0 votes
by
Circuit A
The cells in A are in parallel, current drawn from each cell in less than in B
or
Effective internal resistance in circuit A is less than in B
