KCSE 2012 Power Mechanics Paper 1 with Marking Scheme

Share via Whatsapp

SECTION A (40 marks)

Answer all the questions in this section in the spaces provided.

  1.
    1. Define power mechanics.   (1 mark)
    2. List four types of common body cuts.   (2 marks)
  2.
    1. State one advantage of tubeless tyres over tubed tyres.  (1 mark)
    2. State three reasons for writing a business plan.  (3 marks)
  3.
    1. The nominal size of a Gudgeon pin is 50 mm. If the tolerance is 0.0825 mm, determine its limits.
      (2 marks)
    2. Explain the functions of a multimeter and state how it is connected in each case. (3 marks)
  4.
    1. State the function of each of the following devices in a motor vehicle:
      1. split pin;  (1 mark)
      2. internal snap ring.    (1 mark)
    2. Explain two reasons for alloying metals.  (2 marks)
  5.
    1. State two operational differences between an alternator and a generator.   (2 marks)
    2. State two disadvantages of external combustion engine over internal combustion engine.  (2 marks)
  6.
    1. Name four parts of an automatic transmission system.   (2 marks)
    2. Draw a labelled circuit diagram of the courtesy light circuit.  (3 marks)
  7.  State two types of each of the following:
    1. welding rods;  (1 mark)
    2. brazing rods;   (1 mark)
      1. fluxes.   (1 mark)
  8.
    1. With the aid of a sketch, explain the term negative caster angle.  (2 marks)
    2. Explain how a stabilizer bar works.   (2 marks)
  9.
    1. List four main components driven by the crankshaft in a multi-cylinder engine. (2 marks)
    2. State two precautions to observe when fitting a new cylinder head gasket. (2 marks)

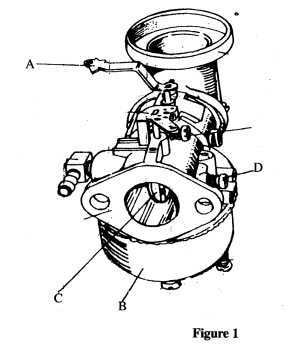

  10. Figure 1 shows a single cylinder engine carburettor.
    KCSE 2012 PM PP1 QS10
    Name the parts labelled A, B, C and D and state the function of each part

SECTION B (60 marks)

Answer question 11 and any other three questions from this section. Candidates are advised to spend not more than 25 minutes on question 11.

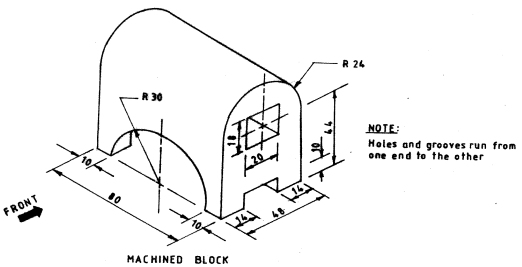

  1. Figure 2 shows a machined block.
    KCSE 2012 PM PP1 QS11
    Draw, full size in first angle projection the following views:   (12 marks)
    1. front elevation;
    2. end elevation;
    3. plan.
      Indicate six leading dimensions.   (3 marks)
      (Use A3 provided)
  2.
    1. List ten components which should be disconnected before removing an engine from a vehicle.
      (5 marks)
    2. A spark ignition multicylinder engine runs but misfires.
      1. Outline the procedure of identifying the misfiring cylinder.  (5 marks)
      2. State five possible causes of misfiring;   (5 marks)
  3.
    1. State three provisions required when designing a power mechanics workshop.   (3 marks)
    2. Sketch a layout of a power mechanics workshop showing its main areas of operation.
      (Use A3 provided)       (12 marks)
  4.
    1. State five types of care practices that enhance the life span of tyres.   (5 marks)
    2. Outline the procedure of changing a flat wheel of a vehicle.   (10 marks)

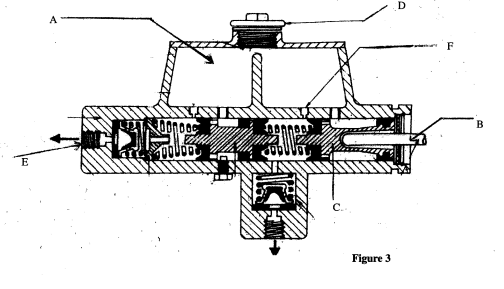

  5. Figure 3 shows a dual master cylinder.
    KCSE 2012 PM PP1 QS15
    1. Name the parts labelled A, B, C, D, E, and F    (3 marks)
    2. Explain the operation of the dual master cylinder under the following conditions:
      1. normal operation;
      2. front brakes failure;
      3. rear brakes failure.            (12 marks)


MARKING SCHEME

  1.
    1. Define power mechanics
      • It is the study about machines that exert mechanical force.  (1 mark)
    2. List four types of body cuts
      • incised;
      • lacerated or torn:
      • brused;
      • stab.  (4 x ½)= 2 marks
  2.
    1. State one advantage of tubeless tyres over tubed tyres.
      • they are lighter in weight;
      • they run at lower temperatures;
      • they hold pressure for a longer time.
        any(1 x 1) = (1 mark)
    2. State three reasons for writing a business plan.
      • to enable a business obtain finances from banks and other financial institutions.
      • to provide guidelines for opening a new business or expanding an existing one.
      • to communicate to outsiders about the goals, objectives and activities of the business
      • to serve as a tool for managing every aspect of the operation of business.
        Any 3 x 1 = 3 marks
  3.
    1. The nominal size of a Godgeon pin is 50mm. If the tolerance is 0.0825mm, determine its limits.
      • Upper limit = 50+ 0.0825 = 50.0825  (1 mark)
      • Lower limit= 50 - 0.08825 = 49.9175  (1 mark)
    2. Explain the functions of a multimeter and state how it is connected in each case.
      • A multimeter is an electrical instrument consisting of an ammeter, ohmeter and voltmeter all combined to form one instrument.  (1 mark)
      • When used as an ammeter the instrument is connected in series with a circuit to measure current.
      • When used as voltmeter it is connected in parallel with a circuit to measure voltage with a circuit to measure voltage.
      • When used as an ohmeter it is connected in series to measure the resistance of a circuit.
        (2 marks)
  4.
    1. State the function of each of the following devices in a motor vehicle:
      1. Split pin- it is used together with either a slotted or castellated nut to prevent it working loose during an operation.    (1 mark)
      2. Internal snap ring - used in housings to keep shafts on other parts in position.   (1 mark)
    2. Explain two reasons for alloying materials:
      • to lower the melting point of the metal.
      • to achieve additional strength and hardness.
      • To increase resistance to corrosion.
      • To alter the colour appearance.
      • To secure cleaner and sharper castings.
        Any 2 x 1 = 2 marks
  5.
    1. State two operational differences between an alternator and a generation.
      • An alternator delivers alternating current while DC generation delivers direct current
      • In the DC generator the amature spins inside a field while in the alternator the field spins inside the startor.
         2x1 = 2 marks
    2. State two disadvantages of external combustion engine over internal combustion engine.
      • External combustion engines are too large for general application.
      • They are not as efficient as the internal combustion engines.
        2 x 1 = 2 marks
  6.
    1. Name four parts of an automatic transmission system.
      • Torque converter
      • Planetary gearcets.
      • Brake bands.
      • Multiple disc clutches.
      • Hydraulic servers and pistons
      • Numerous valves.
      • Cooling means.
      • Manual control systems.
        any 4x= 2 marks

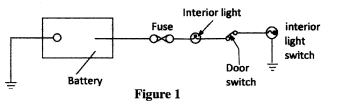

    2. Draw a labelled circuit diagram of the courtesy light circuit.
      KCSE 2012 PM PP1 Ans 6b
      Components correctly drawn and labelled = 5 x ½ = 2½
      Circuit neatly drawn  = ½ marks
      Total = 3 marks
  7.  State two types of each of the following:
    1. Welding rods:
      • Steel /metal filler rods.
      • Cast iron filler rods.
      • Aluminium filler rods.
        Any 2 x ½ = 1 mark
    2. Brazing rods
      • Brass filler rods.
      • Bronze filler rods
        Any 2 x½ = 1 mark
    3. Fluxes
      • Borax
      • Killed spirits.
      • Zinc chloride
      • Salamonic tellow resin
      • Dilute hydrochloric acid.
      • Olive oil.
      • Phosphoric acid.
        Any 2 x½= 1 mark
  8.
    1. With the aid of a sketch explain the terms negative caster angle.
      KCSE 2012 PM PP1 Ans 8
      This is the angle formed by the forward or tilting of the steering axis when viewed from the side of the wheel.
      Sketch 1 mark
      Explanation 1 mark
      Total   2 marks
    2. Explain how a stabilizer bar works
      • when the body of the vehicle attempts to lean onto one side, as in rounding a curve, one end of the bar bends downwards, producing a tortional effect in the bar that resists the role-tipping effect/action and helps keep the body level      2 marks
  9.
    1. List four man components driven by the crankshaft in a multi-cylinder engine:
      • Cramshaft;
      • Fan;
      • Oilpump
      • Water pump
      • Alternator
      • Flywheel.
        Any 4 x ½ = 2 marks
    2. State two precautions to be observed when fitting a new cylinder head gasket:
      • Ensure the head and block surfaces are clean and flat.
      • Handle the gasket carefully to avoid creasing the metal and breaking the asbestos filing
      • use either gasket varnish or smear a thin layer of grease over the whole surface.
      • Fit the gasket properly without blocking any of the holes. -
      • Tighten the cylinder head nuts to the right torque and sequence.
        any 2 x 1 = 2 marks
  10. Name the parts labelled A, B, C and D and state the function of each part.
    • A - Choke lever reduces the amount of air supplied during engine cold starting.
    • B - Float bowl Acts as a storage for petrol and operating needle valve to regulate the petrol flow into the float bowl.
    • C- Throttle valve regulates the amount of air-fuel mixture entering the cylinder.
    • D. Idle mixture adjustment screw-it regulates the mixture for idling cct screw.
      4x1 = 4 marks
  11.

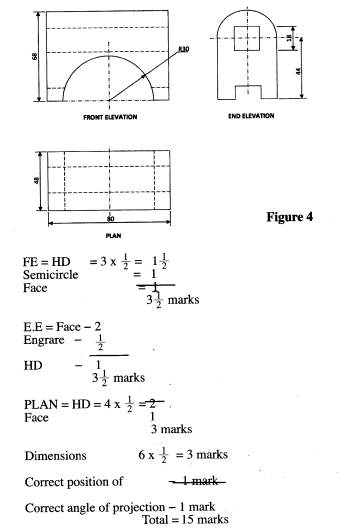

    KCSE 2012 Elec PP1 Ans 11
    Components to be disconnected before removing an engine from a vehicle:
  12.
    1.
      • Battery cables and the battery.
      • Air cleaner.
      • Radiator hoses from the engine and water pump. (Drain Radiator)
      • Heater hoses.
      • Fan and radiator.
      • Oil pressure cables.
      • Fuel pump hoses.
      • Alternator
      • Primary wire from ignition coil.
      • Exhaust pipe form exhaust manifolds.
      • Starter motor and its cables.
      • Intake manifold hoses
      • Engine mounts form frame brackets.
      • Clutch or automatic transmission.
        any 10 x ½ = 5 marks
    2.
      1.
        • Start the engine and leave it idling.
        • Using insulated pliers, disconnect each spark plug at a time and note if there is change in engine speed.
        • No change in speed means the cylinder is missing even before the cable was disconnected.
        • Check a missing cylinder further by holding the spark plug lead clip close to the engine block while the engine is running.
        • No spark implies a high voltage leak, hence the cylinder misfires.
      2. Possible causes of misfiring.
        • Defective spark plug or its cable.
        • Defective distributor cap.
        • Defective valve action.
        • Worm pistons and rings.
        • Overheated engine.
        • Defective head gasket
        • Compression leakage.
        • Intake manifold leakage.
        • Cross-firing plugs wires.
        • Defective coil, condenser.
        • Large gap c.b. among others.,
          any 5 x 1 = 5 marks
  13.
    1. State three provisions required when designing a power mechanics workshop.
      • doors
      • spaces
      • passage ways
      • washing place
      • provision of light
      • ventilation
      • fire points
      • emergency points.
        any 3 x 1 = 3 marks
    2.

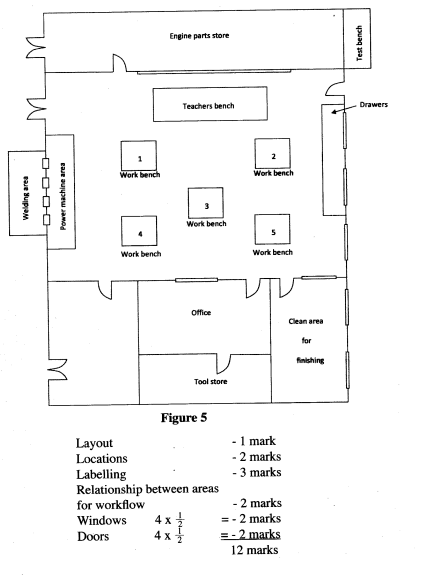

      KCSE 2012 PM PP1 Ans 13b
  14.
    1. Solution: Care practices that enhance tyre lifespan.
      • Regular inspection of tyres for nails, stones e.t.c. They should be removed and small cuts should be repaired by vulcanising
      • Maintaining inflation pressures at the recommended values.
      • Keeping toe-in and toe-out within specified limits.
      • Avoiding violent usage of clutch and brakes (e.g. sudden braking and sudden release clutching).
      • Frequent checking of suspension and steering system which can cause misalignment.
      • Wheel rotation after every 5000 km or so, incorporating the spare wheel.
      • Avoiding contact with oil, grease or paint.
      • Avoiding continuous exposure to ultra-violet light from strong sunshine.
        any 5x1 = 5 marks
    2. Procedure for changing a wheel:
      • parking vehicle on a flat surface.
      • chocking the appropriate wheel.
      • loosening nuts diagonally, remove nuts.
      • Jacking up the vehicle.
      • putting support stands (or equivalent) under the vehicles
      • removal of the flat wheel.
      • fitting the inflated wheel to replace the flat wheel.
      • replacing wheel nuts and tightening them slightly.
      • unjacking the wheel and removal of the jack.
      • final tightening of the wheel diagonally and to the correct torque. Unchoke.
        10 x 1 = 10 marks
  15.
    1. The parts labelled A to F.
      • A - Rear reservoir.
      • B - Push rod.
      • C - Primary piston.
      • D - Vented cap
      • E- Outer port.
      • F - Front by-pass port.
        6 x ½  = 3 marks
    2. Explain the operation of the unit under the following conditions.
      1. Normal operation.
        • The brake pedal is depressed (½), it pushes the push (½ ) rod to more forward once by front pass (½) port. It is passed by primary piston which pushes the secondary (½) piston. In both areas brakes are applied at the front areas brakes are applied at the front and rear (½) axles. Any excess (½) movement is controlled by top secondary piston.   (3 marks)

          On release of (½) pedal the push rod releases (½) the spring that releases the piston (½) and brake fluid is released to the reservoir thus releasing (½) brake application.
          (3 marks)
      2. Front brake failure.
        • On application of the pedal the primary piston gets no resistance (1) until it comes into contact with secondary, (1) it is then pushed to apply rear brakes (1)  (3 marks)
      3. Rear brakes failure/leakage.   (3 marks)
        • The pedal is depressed, the secondary (1) piston does not get any resistance its pushed to end of cylinder (1), on further application the front wheel brakes (1) are applied.
