KCSE 2017 Physics Paper 2 with Marking Scheme

Share via Whatsapp
Download PDF for future reference Get on Whatsapp for 50/-

INSTRUCTIONS TO CANDIDATES

  • This paper consists pf two sections: A and B
  • Answer all questions in section A and B.
  • All working MUST be clearly shown where necessary.
  • Non-programmable silent electronic calculator may be used.
  • Candidates should answer the questions in English

SECTION A: (25 marks)

Answer all the questions in this section in the spaces provided.\

  1. State any two uses of microwaves.    (2 marks)
  2. In a laboratory there are four metals - tin, nickel, copper and cobalt. Of these metals, name the metals that are;
    1. magnetic     (1 mark)
    2. non-magnetic.    (1 mark)
  3. State one use of echoes.    (1 mark)
  4. State what is meant by polarisation in simple cells.    (1 mark)
  5. State two advantages of using convex mirrors to monitor movements in a large supermarket.
    (2 marks)
  6. Figure 1 shows an insulated wire wound on a U-shaped iron core connected to a battery.
    KCSE 2017 phys PP2 Q6
    Determine the polarity of A.   (1 mark)
  7. Explain how the greenhouse gets warm.   (2 marks)
  8. Draw a circuit diagram to show a p-n junction diode in the forward biased mode.   (1 mark)

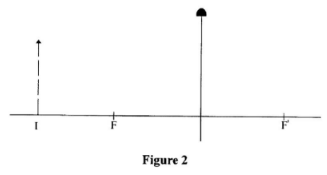

  9. Figure 2 shows a virtual image I formed by a convex lens.
    KCSE 2017 phys PP2 Q9
    Draw a ray diagram to locate the object.    (3 marks)
  10. Write an equation to show how an element KCSE 2017 phys PP2 Q10 decay to element Y by emitting a beta particle.  (1 mark)
  11. Explain what is observed when an uncharged sphere is brought close to a positively charged electroscope.(3 marks)

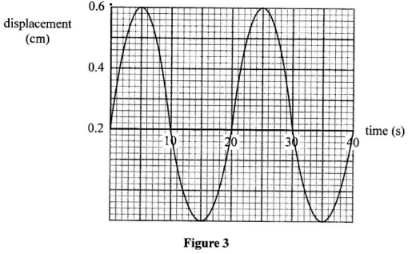

  12. Figure 3 shows a transverse wave.
    KCSE 2017 phys PP2 Q12
    Determine the frequency of the wave.    (2 marks)

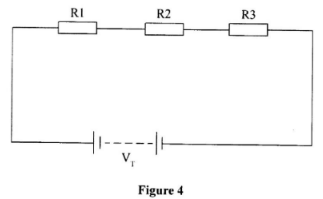

  13. Figure 4 shows three resistors connected in series.
    KCSE 2017 phys PP2 Q13
    Using Ohm's law, show that the effective resistance is given by the expression:
    RT = R1 + R2 + R3     (3 marks)
  14. State how heating is achieved in a resistance wire.   (1 mark)

SECTION B: (55 marks)

Answer all the questions in this section in the spaces provided

  1.
    1. Figure 5 shows the interface between glass and air.
      KCSE 2017 phys PP2 Q15a
      Draw on the figure a ray diagram to illustrate the critical angle.    (3 marks)
    2. Figure 6 shows a ray of light incident at right angles to face AB of a right angled glass prism of refractive index 1.62
      KCSE 2017 phys PP2 Q15b
      1. Determine the critical angle of the material   (3 marks)
      2. Complete the ray diagram to show the path of light until it leaves the prism.   (2 marks)
    3. State any two applications of prisms.   (2 marks)
  2.
    1. Figure 7 shows a set up that may be used to observe photoelectric effect. A radiation is incident on the cathode. It is observed that the microammeter registers a current.
      KCSE 2017 phys PP2 Q16
      1. Explain how the current is produced.    (2 marks)
      2. State with a reason what must be done for a higher current to be registered.   (2 marks)
      3. It was observed that for a certain incident radiation, no current was registered Explain this observation.   (2 marks)
    2. A monochromatic light of wavelength 4.50 x 10−7m is incident on a metal surface of threshold frequency 5.5 X 1014 Hz (Speed of light c is 3.0 x 108ms−1 and planks constant h is 6.63 X 10−34 Js).
      Determine
      1. the work function of the metal surface,   (3 marks)
      2. average kinetic energy of the emittal photoelectrons.   (4 marks)
  3.

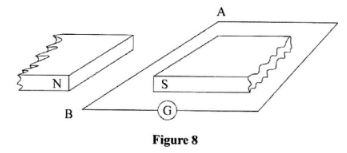

    1. Figure 8 shows a conductor AB connected to a galvanometer and placed between two permanent magnets.
      KCSE 2017 phys PP2 Q17
      1. Conductor AB is moved perpendicular to the magnetic field. State and explain the observation made on the galvanometer.   (3 marks)
      2. State the effect of moving the conductor faster.   (1 mark)
    2. A transformer is used to step down 240 V to 12 V for use in an electric appliance operating at 0.5A. If the primary coil has 600 turns, determine the;
      1. number of turns in the secondary coil,    (3 marks)
      2. current in the primary coil.    (3 marks)
  4.
    1. State two factors that affect the capacitance of a parallel plate capacitor.   (2 marks)

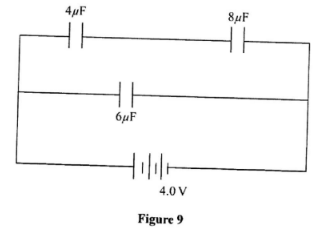

    2. Figure 9 shows an electric circuit in which three capacitors are connected across a power supply
      (2 marks)
      KCSE 2017 phys PP2 Q18b
      Determine the;
      1. total capacitance,   (4 marks)
      2. quantity of charge stored on the 8μF capacitor.     (3 marks)
  5.
    1. Figure 10 shows a block diagram of a cathode ray oscilloscope (CRO).
      KCSE 2017 phys PP2 Q19a
      1. State the names of the parts labelled B1 and B2    (2 marks)
      2. State and explain the function of the part marked A.    (3 marks)
    2. Figure 11 shows a trace of a signal observed on the screen of a CRO. The time-base setting is 20 mscm−1
      KCSE 2017 phys PP2 Q19b
      Determine the frequency of the signal.   (4 marks)
    3. Explain why tunsten is used as a target in an x-ray tube.   (2 marks)

MARKING SCHEME

  1.
    • Cooking/warming/heating
    • Communication / Radar/ measure distances   (2 marks)
  2.
    • Magnetic - Nickel, cobalt
    • Non-magnetic - Tin, copper  (2 marks)
  3. Measuring distances/ speed of sound.  (1 mark)
  4. Polarization is the formation of hydrogen gas at the positive terminal of the cell.  (1 mark)
  5.
    • Have a wide/wider field of view.
    • Form upright images.  (2 marks)
  6. A-South pole  (1 mark)
  7. The light passes through the walls and gets absorbed by the soil, emitting energy of longer wavelengths which cannot penetrate the walls hence get trapped within the green house causing heating.  (2 marks)
  8.
    KCSE 2017 phys PP2 Ans 8(1 mark)
  9.

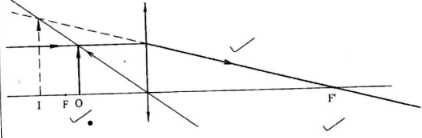

    KCSE 2017 phys PP2 Ans 9  (3 marks)
    • Rays must have direction
    • Virtual rays dotted
  10.
    KCSE 2017 phys PP2 Ans 10    (1 mark)
  11.
    1. The leaf falls
    2. Charge is induced on the sphere causing repulsion of electrons to the  leaf hence leaf falls.
      (3 marks)
  12.  T = 20s
    f = 1/T1/20
    = 0.05 HZ    (2 marks)
  13. VT =  V1 + V2 + V3
    from ohm's law V = IR therefore
    ITRT = I1R1 + I2R2 + I3R
    but I1 = I2 = I3 = IT since they are in series
    IRT = R1 + R2 + R3 (3 marks)
  14. Conversion of the Kinetic energy of the electrons into heat energy/ Conversion of electrical energy to heat    (1 mark)
  15.
    1.

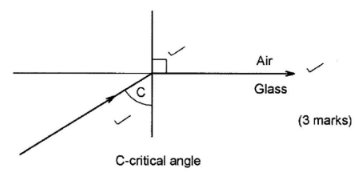

      KCSE 2017 phys PP2 Ans 15   (3 marks)
    2.
      1. n =   1
              sin c
        Sin c = 1 1
                    n   1.62
        C=38.1°  (3 marks)
      2.
        KCSE 2017 phys PP2 Ans 15b
    3.
      • Dispersion of white light
      • In periscopes
      • In Binoculars
      • In telescopes (Any 2)      (2 marks)
  16.
    1.
      1. Radiations cause photo electrons to be ejected from the metal surface (cathode), the electrons are attracted by the anode hence current flows. (2 marks)
      2. Use a radiation of higher intensity Source is made moved closer/ increase anode voltage/accelerating voltage.  (2 marks)
      3. The frequency of the incident radiation is below the threshold frequency of the surface hence no emission can take place. (2 marks)
    2.
      1. Wo = hfo
        = 6.63 x 10−34 x 5.5 x 1014
        = 3.647 x 10−19   (3 marks)
      2. hf = hfo +K.E
        K.E= hc/λ − W
        KCSE 2017 phys PP2 Ans 16b
        = 4.42 x 10−19 − 3.647 x 10−19
        = 7.73 x 10−20J (4 marks)
  17.
    1.
      1. A momentary deflection is observed, Conductor cuts the field. An emf is induced in AB Causing current in the circuit  (3 marks)
      2. A bigger deflection is observed/higher current (1 mark)
    2.
      1. Vp = Np
        Vs    Ns
        Ns = 600 x 12
                240
            = 30turns    (3 marks)
      2. Np = Is
        Ns    Ip
        Ip30 x 0.5
                   600
            =0.025 A  (3 marks)
  18.
    1.
      • Area of overlap of the plates
      • Distance between the plates.
      • Type of dielectric.   (2 marks)
        (Any 2)
    2.
      1.  1 = 1 +
        CT   C1   C2
        = + = 2 + 1 =
            4     8        8        8
        CT18/3 = 2.67 μF
        C = 6 + 2.67 = 8.67 μF    (4 marks)
      2.  Qin series section
        Q = CV
        =2.67 x 4.0
        = 10.68C
        Q(4μF) = 10.68    (3 marks)
  19.
    1.
      1. B1 -y deflecting plates
        B2 - x deflecting plates   (2 marks)
      2. Grid; controls the intensity by controlling the number of electrons reaching the screen.
        If made more negative less electrons pass through  (3 marks)
    2. T = 8 X 20 ms−1
      = 160
      = 0.16 s
      F = 1/T
      = 1/0.16 = 6.25Hz  (4 marks)
    3. Tungsten has a high melting point.
      It can with stand high temperatures.   (2 marks)
