Physics Paper 2 Questions and Answers - Bunamfan Post Mock 2021 Exams

Share via Whatsapp

INSTRUCTIONS:

  1. This paper consists of TWO Sections: A and B.
  2. Answer all questions in section A and B.
  3. All working MUST be clearly shown.
  4. Nonprogrammable silent electronic calculators and KNEC mathematical tables may be used.
  5. Candidate should check the question paper to ascertain that all the pages are printed as indicated and that no questions are missing.

FOR EXAMINER’S USE ONLY.

SECTION

QUESTION

MAX SCORE

CANDIDATE’S SCORE

A

1-14

25



B

15

12



16

10



17

11



18

12



19

10



TOTAL SCORE

80




QUESTIONS

SECTION A (25 MARKS)
Answer All the questions in this section in the spaces provided.

  1. Figure 1 shows a ray of light XY striking the mirror CD held at an angle of 108◦ to mirror DE.
    1 akhduada
    Complete the path of the ray XY and state the final angle of reflection. (3 marks)
  2. When storing a pair of bar magnets, it is advisable to put a keeper at each end.
    1. Draw a diagram in the space below to show the above arrangement and label the poles of each magnet (1 mark)
    2. Explain briefly how the above arrangement can minimize the loss of magnetism in the bar magnets (1 mark)
  3. Figure 2 below shows plane waves incident on a plane reflector inclined at 60◦C to the horizontal
    3 aghdada
    Complete the diagram to show reflected waves (1 mark)

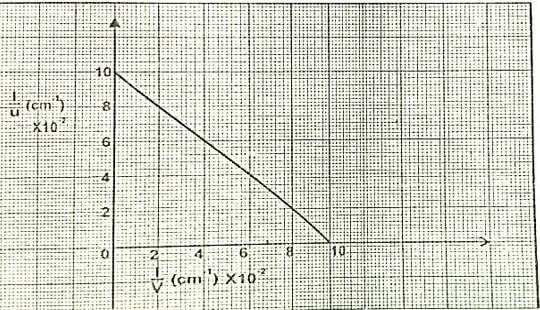

  4. A student while investigating the focal length of a certain concave mirror, measured object and image distances and drew a graph 0f 1/u against 1/v shown below.
    4 agdgaydad
    From the graph, determine the focal length (2 marks)
  5. It is advisable to top up acid level of an accumulator with distilled water and not acid. Give a reason for this (1 mark)
  6. Find the combined capacitance between A and B of the arrangement shown in the figure below. (2 marks)
    6 ayygduyada
  7. Figure 3 shows a simple circuit breaker.
    7 jaguydada
    Explain briefly how it works (3 marks)
  8. Figure 4 shows a transverse wave.
    8 ujgagdgada
    1. Calculate the frequency of the wave (2 marks)
    2. Sketch another wave on the diagram that has double the frequency and half the amplitude (1 mark)
  9. For an echo to be heard, the minimum distance between the obstacle and the observer must be 17m.If the minimum time for hearing an echo is 0.1 seconds, Determine the speed of sound in air (2 marks)
  10. Figure 5 shows a bar magnet FG being pushed into a coil connected to a Centre zero galvanometer. The current induced in the coil is shown.
    10 auygduygada
    State the polarity of F (1 mark)
  11. Name one electromagnetic wave whose energy is higher than that of visible light. (1 mark)
  12. Below is part of radioactive decay series of uranium 238.
    12 ajgduygada
    Identify isotopes from the series above. (1 mark)
  13. State how polarization is reduces in a simple cell (1 mark)
  14. Explain why it is not advisable to use a 10A fuse for hair drier rated 2.5Kw, 240V. (2 marks)

SECTION B (55 MARKS)

  1.
    1. What is meant by the term “A.C rectification” (1 mark)
    2. Figure 6 shows one method of A.C rectification using four diodes A,B,C,D.
      15 jgdgagdad
      Explain how the A.C rectification is achieved in the above circuit (2 marks)
    3. In a transformer, a voltage of 240V is to be stepped down to 24V. The primary current is found to be 1.5 A while the secondary current is 14A. Calculate:
      1. Power input (1 mark)
      2. Power output (1 mark)
      3. Power wasted (1 mark)
      4. Efficiency of the transformer (3 marks)
    4. State two ways in which the power in a transformer is wasted (2 marks)
  2.
    1. Figure 7 below shows the circuits close to each other
      16 auygduygada
      When the switch is closed, the galvanometer shows a reading and then returns to zero.
      1. Explain the observation (2 marks)
      2. Give one adjustment that can be done to the arrangement so that:
        1. The galvanometer gives a bigger deflection in the same direction (1 mark)
        2. The galvanometer deflects in opposite direction when the switch is closed (1 mark)
    2. In an X-ray tube, the electrons are accelerated by a p.d of 24000V. Assuming that 2% of energy produced is converted to X-rays. Determine the:
      1. Energy of the X-rays produced (3 marks)
      2. Frequency of X-rays reduced (Take planks constant h= 6.6× 10-34Js and charge on an electron e= 1.6× 10-19C). (3 marks)
  3.
    1. State the function of the grid of a cathode ray oscilloscope (CRO) (2 marks)
    2. State what is observed on the screen of a CRO when:
      1. Low voltage alternating current is connected to the time base and the y-gain switched off. (1 mark)
      2. A high voltage ac is connected to the y-gain and the time base is switched off (1 mark)
    3. The graph shows the activity versus tie for a sample of radioactive material.
      17 suyugydaad
      Use the graph to determine:
      1. The half life of the sample (3 marks)
      2. The number of half-life’s needed for the activity to reduce from 300C/S to 37.5CS-1 (3 marks)
  4. The figure 8 below shows the construction and circuit of the modern physics X-ray tube.
    18 aygdaghdada
    1. Indicate on the diagram the path of the X-ray beam (1 mark)
    2. Name the part marked C and state its function (2 marks)
    3. Name the metal used in parts A and B and state why they are suitable for use in the tube (4 marks)
    4. Why are cooling fins necessary? (1 mark)
    5. Form four students performed an experiment in photoelectric effect and drew the graph below from the data collected
      e augydugdad
      From the graph determine:
      1. Threshold frequency (1 mark)
      2. Planks constant (take charge on an electron, e= 1.6 × 10-19C) (3 marks)
  5.
    1. A person standing behind a wall hers a bell ringing although he cannot see the bell. What property of sound enables him hear the sound (1 mark)
    2. The figure 9.0 below is a sketch of ripples caused by a vibrator in a ripple tank whose frequency is 50Hz.
      19 ba duagdada
      Using the above information, determine the speed of the wave motion (3 marks)
    3. The speed of sound in air determined o a warm day is 330m/s. Explain any difference you would expect in the results if the measurement is done on a cold day. (2 marks)
    4. In an experiment to determine the speed of sound, an observer stood in front of a high wall at a distance of 80m. he clapped two boards together at such a rate that each clap coincided with the echo from the wall. A second observer noted a time of 9.5seconds starting with the first clap and ending with the 21st clap.
      1. Calculate the speed of sound under these conditions (3 marks)
      2. Describe one probable source of error in this experiment (1 mark)
      3. State two ways in which sound wave differ from light waves (2 marks)


MARKING SCHEME

SECTION A (25 MARKS)
Answer All the questions in this section in the spaces provided.

  1. Figure 1 shows a ray of light XY striking the mirror CD held at an angle of 108◦ to mirror DE.
    1 akhduada
    Complete the path of the ray XY and state the final angle of reflection. (3 marks)
  2. When storing a pair of bar magnets, it is advisable to put a keeper at each end.
    1. Draw a diagram in the space below to show the above arrangement and label the poles of each magnet (1 mark)
    2. Explain briefly how the above arrangement can minimize the loss of magnetism in the bar magnets (1 mark)

      The keeper in contact with a south pole of the magnet acquires a North pole while that in contact of the south pole acquires a south pole so that the dipoles in the magnet and the keepers form complete bloops hence dipoles retain their orientation

  3. Figure 2 below shows plane waves incident on a plane reflector inclined at 60◦C to the horizontal
    3 aghdada
    Complete the diagram to show reflected waves (1 mark)
  4. A student while investigating the focal length of a certain concave mirror, measured object and image distances and drew a graph 0f 1/u against 1/v shown below.
    4 agdgaydad
    From the graph, determine the focal length (2 marks)
  5. It is advisable to top up acid level of an accumulator with distilled water and not acid. Give a reason for this (1 mark)
    Water regulates the concentration while acid only increases concentration of the accumulator
  6. Find the combined capacitance between A and B of the arrangement shown in the figure below. (2 marks)
    6 ayygduyada

    ans 1
  7. Figure 3 shows a simple circuit breaker.
    7 jaguydada
    Explain briefly how it works (3 marks)

    When excess current flows through the circuit, increased magnetic power makes the soft iron core to attract the soft iron armature thus opening the switch current flow.

  8. Figure 4 shows a transverse wave.
    8 ujgagdgada
    1. Calculate the frequency of the wave (2 marks)
      T = 0.42 S = 0.12
      3.5 cycles
      f = 1 =   1   = 8.33 Hz
           T   0.12
    2. Sketch another wave on the diagram that has double the frequency and half the amplitude (1 mark)
  9. For an echo to be heard, the minimum distance between the obstacle and the observer must be 17m.If the minimum time for hearing an echo is 0.1 seconds, Determine the speed of sound in air (2 marks)
    V = 2d = 2 x 17 = 340 ms-1
           E        0.1
  10. Figure 5 shows a bar magnet FG being pushed into a coil connected to a Centre zero galvanometer. The current induced in the coil is shown.
    10 auygduygada
    State the polarity of F (1 mark)
    south pole
  11. Name one electromagnetic wave whose energy is higher than that of visible light. (1 mark)
    Uv, X rays and gammar rays
  12. Below is part of radioactive decay series of uranium 238.
    12 ajgduygada
    Identify isotopes from the series above. (1 mark)
    identifying hagdad
  13. State how polarization is reduces in a simple cell (1 mark)
    By addition of a depolarizer eg potassium dichromate
  14. Explain why it is not advisable to use a 10A fuse for hair drier rated 2.5Kw, 240V. (2 marks)
    p = V = I = 2500 = 10.41A
          I           240

    Not suitable, fuse used must be slightly higher than 10.41A

SECTION B (55 MARKS)

  1.
    1. What is meant by the term “A.C rectification” (1 mark)
    2. Figure 6 shows one method of A.C rectification using four diodes A,B,C,D.
      15 jgdgagdad
      Explain how the A.C rectification is achieved in the above circuit (2 marks)
      When P is positive the diodes C and A, are forward biased and the current  flows through C resistor A and back to source. When Q is positive, diodes D and B, are forward biased and the current flows through Q, D, resistor B, P and back to the source.
    3. In a transformer, a voltage of 240V is to be stepped down to 24V. The primary current is found to be 1.5 A while the secondary current is 14A. Calculate:
      1. Power input (1 mark)
        Power input = Ip × Vp = 1.5 × 240 = 360 watts
      2. Power output (1 mark)
        Power output = Is × s = 14 × 24 = 336 watts
      3. Power wasted (1 mark)
        Power wasted = 360 – 336 = 24 watts
      4. Efficiency of the transformer (3 marks)
         = power output x 100%
             power input
        = 336 x 100% = 93.3%
           360
    4. State two ways in which the power in a transformer is wasted (2 marks)
      Eddy currets, Hysteris, Copper losses, Flux leakage
  2.
    1. Figure 7 below shows the circuits close to each other
      16 auygduygada
      When the switch is closed, the galvanometer shows a reading and then returns to zero.
      1. Explain the observation (2 marks)
        When current flows, the change in current in the dc coil causes a flux which links with the coil in 2nd circuit thus an e.m.f is induced. When closed no more  change in  flux in dc hence no induced e.m.f
      2. Give one adjustment that can be done to the arrangement so that:
        1. The galvanometer gives a bigger deflection in the same direction (1 mark)

          Increasing turns in primary coil using more cells in the primary coil.

        2. The galvanometer deflects in opposite direction when the switch is closed (1 mark)
          Reversing terminals of the battery
    2. In an X-ray tube, the electrons are accelerated by a p.d of 24000V. Assuming that 2% of energy produced is converted to X-rays. Determine the:
      1. Energy of the X-rays produced (3 marks)
        x ray energy  = 2/100 x ev = 2 x 1.6 x 10-19 x 24000
        = 768 x 10-19 ev
        1ev = 1.6 x 10-19J
        x ray energy = 768 J
      2. Frequency of X-rays reduced (Take planks constant h= 6.6× 10-34Js and charge on an electron e= 1.6× 10-19C). (3 marks)
        f = E =     768    = 116 x 10-34 = 1.16 x 1032 Hz
             h    66 x 10-34
  3.
    1. State the function of the grid of a cathode ray oscilloscope (CRO) (2 marks)
      Grid controls brightness of the screen by limiting the number of electrons reaching the screen by repulsion
    2. State what is observed on the screen of a CRO when:
      1. Low voltage alternating current is connected to the time base and the y-gain switched off. (1 mark)
        A dark spot is seen moving to and from on the horizontal of the screen.
      2. A high voltage ac is connected to the y-gain and the time base is switched off (1 mark)
        A dark line is formed vertically along the screen
    3. The graph shows the activity versus tie for a sample of radioactive material.
      17 suyugydaad
      Use the graph to determine:
      1. The half life of the sample (3 marks)

        Half  life= time corresponding to activity of 310/150 which is 30minutes

      2. The number of half-life’s needed for the activity to reduce from 300C/S to 37.5CS-1 (3 marks)
        ii aygduada
  4. The figure 8 below shows the construction and circuit of the modern physics X-ray tube.
    18 aygdaghdada
    1. Indicate on the diagram the path of the X-ray beam (1 mark)

      (X-rays must be reflected from B)

    2. Name the part marked C and state its function (2 marks)
      Cathode- To emit electrons and focus them to the anode
    3. Name the metal used in parts A and B and state why they are suitable for use in the tube (4 marks)
      1. Copper; good conductor of heat
      2. Tungsten/Molybdenum ; has high melting point
    4. Why are cooling fins necessary? (1 mark)
      To enhance cooling of the copper anode
    5. Form four students performed an experiment in photoelectric effect and drew the graph below from the data collected
      e augydugdad
      From the graph determine:
      1. Threshold frequency (1 mark)
                    f0 = 4.5 × 1014 Hz
      2. Planks constant (take charge on an electron, e= 1.6 × 10-19C) (3 marks)
        hopefully last adad
  5.
    1. A person standing behind a wall hers a bell ringing although he cannot see the bell. What property of sound enables him hear the sound (1 mark)
      Diffraction
    2. The figure 9.0 below is a sketch of ripples caused by a vibrator in a ripple tank whose frequency is 50Hz.
      19 ba duagdada
      Using the above information, determine the speed of the wave motion (3 marks)
      1=24/3 = 8cm       V=f = 50 x 8/100  = 4m/s
    3. The speed of sound in air determined o a warm day is 330m/s. Explain any difference you would expect in the results if the measurement is done on a cold day. (2 marks)
      The speed will be wlower because of low temperature
    4. In an experiment to determine the speed of sound, an observer stood in front of a high wall at a distance of 80m. he clapped two boards together at such a rate that each clap coincided with the echo from the wall. A second observer noted a time of 9.5seconds starting with the first clap and ending with the 21st clap.
      1. Calculate the speed of sound under these conditions (3 marks)
        V=n x 2d
         = 20 x 2 x 80
                   95
         = 336.8 m/s
      2. Describe one probable source of error in this experiment (1 mark)
        The time for the 20 claps might not be accurate
      3. State two ways in which sound wave differ from light waves (2 marks)
        Requires a material medium to travel through

Download Physics Paper 2 Questions and Answers - Bunamfan Post Mock 2021 Exams.


Tap Here to Download for 50/-




Why download?

  • ✔ To read offline at any time.
  • ✔ To Print at your convenience
  • ✔ Share Easily with Friends / Students


Join our whatsapp group for latest updates
Get on WhatsApp Download as PDF
.
Subscribe now

access all the content at an affordable rate
or
Buy any individual paper or notes as a pdf via MPESA
and get it sent to you via WhatsApp



What does our community say about us?

Join our community on:

  • easyelimu app
  • Telegram
  • facebook page
  • twitter page
  • Pinterest
